| CENTRE DISC DESIGN BUTTERFLY VALVES |
| |
 |
| Compliance Standards |
| Parameter |
Compliance to |
| Design |
BS 5155/ API 609 Category A / MSS SP 67/ ISO 5752/IS 13095 |
| Pressure Temperature Rating |
ASME B 16.34 |
| Face to Face / End to End |
Short Wafer Type as per ISO 5752 Tab 5/ API 609 Category A |
| End Connection Dimensions |
Wafer to suit PN DIN PN 6/ 10/ 16/ BS Table D & E/ IS 6392 /ASME B 16.1 / 16.5/AWWA C 207 Class B, D, E |
| Inspection & Testing |
ISO 5208 Category A /API 598/ANSI/ FCI 70-2 Class I |
|

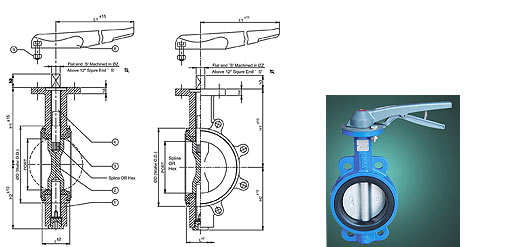

| Part No. |
Part |
Material |
| 1 |
Body |
GG 25*/ GGG 40* / A 216 WCB*/ A 351 CF 8/ CF 8M |
| 2 |
Disc |
GG 25*/ GGG 40* / A 216 WCB*/ A 351 CF 8/ CF 8M |
| 3 |
Seat |
Nitrile / EPDM/ PTFE |
| 4 |
Stem |
AISI 410 / AISI 304/ AISI 316 |
| 5 |
Lever |
Carbon Steel |
|
| |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
| B |
43 |
46 |
46 |
52 |
56 |
60 |
68 |
78 |
78 |
102 |
114 |
127 |
154 |
| C |
99 |
110 |
116 |
134 |
177 |
235 |
259 |
284 |
335 |
380 |
410 |
440 |
495 |
| E |
129 |
140 |
146 |
164 |
207 |
300 |
332 |
357 |
357 |
403 |
433 |
467 |
522 |
| F |
55.5 |
67.5 |
73.5 |
92 |
120 |
150.5 |
194.5 |
226 |
269 |
298 |
329 |
359 |
439 |
| H |
96 |
105 |
123 |
157 |
212 |
262 |
322 |
373 |
433 |
490 |
546 |
600 |
714 |
| ZN |
27 |
47 |
63 |
83 |
136 |
185 |
234 |
280 |
326 |
370 |
422 |
470 |
566 |
| ZF |
4 |
10 |
16 |
23 |
45 |
67 |
88 |
106 |
127 |
140 |
160 |
178 |
215 |
|
* Before Assembly the body of valves are with epoxy paint, thickness of 150 Microns (Min.) colour Blue/ Black for CI (GG 25)/ DI (GGG 40)/ WCB (A 216 WCB). The discs made of CI (GG 25)/ DI (GGG 40)/ WCB (A 216 WCB) are coated with epoxy paint, thickness 2.7 mills in white colour.Special Coating for Food Products can be applied to the disc on request.
Every individual valve manufactured at HK is inspected and pressure tested, for which test certificates are provided according to ISO 10474/ EN 10204 3.1 B
Due to continuous product development the products, texts, photographs, graphics and diagrams in this broucher may be subject to alteration by HK without prior notice or reasons being given.
|
|
